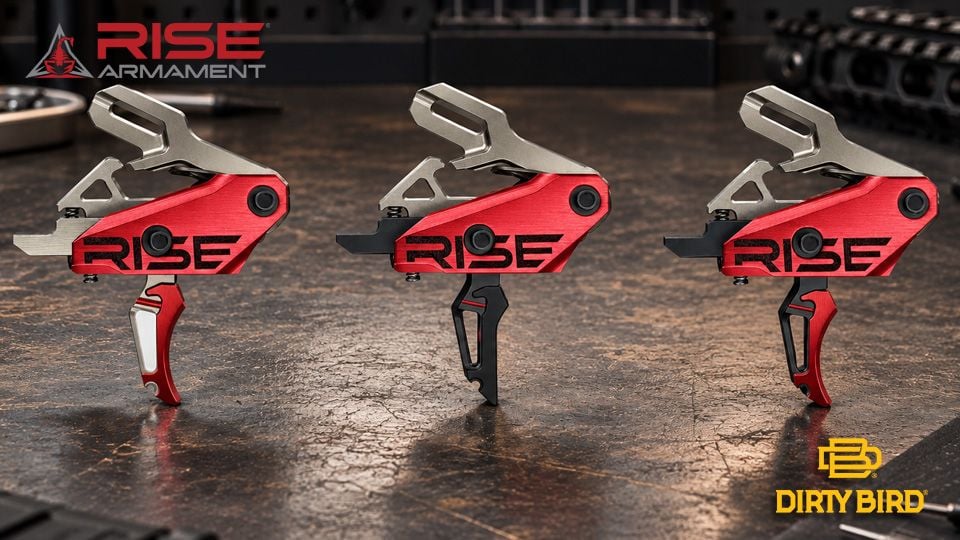

Rise Armament REV-535 Trigger Overview

There are plenty of AR upgrades that are easy to ignore. The trigger is not one of them.

A factory trigger will get the job done, but once a shooter spends time behind a cleaner single-stage setup, the difference is hard to miss. Less travel, a cleaner break, and a shorter reset can change the entire feel of a rifle.

The Rise Armament REV-535 Trigger takes that familiar idea and adds something different to the mix. Rather than focusing only on trigger feel, Rise redesigned the cassette around faster, simpler installation. The result is a trigger that borrows heavily from the company’s RA-535 while introducing its new Slide and Snap system.

The Slide and Snap Design of the Rise Armament REV-535 Trigger

The most obvious difference with the REV-535 is the way the trigger is packaged into the cassette.

Many drop-in AR triggers still rely on separate pins and additional hardware to keep everything secured in the lower. The REV-535 is built around an integrated pin system designed to reduce the amount of loose hardware involved.

That may seem like a small change, but anyone who has assembled enough lowers knows how quickly small parts can turn a simple job into a longer one.

Rise designed the REV-535 so the cassette can be placed into a compatible receiver with fewer extra steps than a traditional drop-in setup. There are no external set screws involved, and the overall design is intended to make installation quicker and cleaner.

For shooters who frequently build or upgrade ARs, that is arguably the biggest reason to look at this trigger.

Familiar RA-535 Performance

The installation system is new, but the trigger characteristics will be familiar to anyone who has experience with Rise Armament’s RA-535.

The REV-535 is a single-stage design with a listed pull weight in the 3 to 3.5-pound range. There is minimal take-up before the break, followed by a short reset.

Rise refers to that reset as Quik-Klik.

That combination makes the REV-535 a natural fit for shooters who prefer a fast, direct single-stage trigger instead of the take-up and defined wall associated with a two-stage design.

The goal here is not to completely reinvent how a Rise trigger feels. The REV-535 is more about taking an established trigger design and packaging it in a more convenient system.

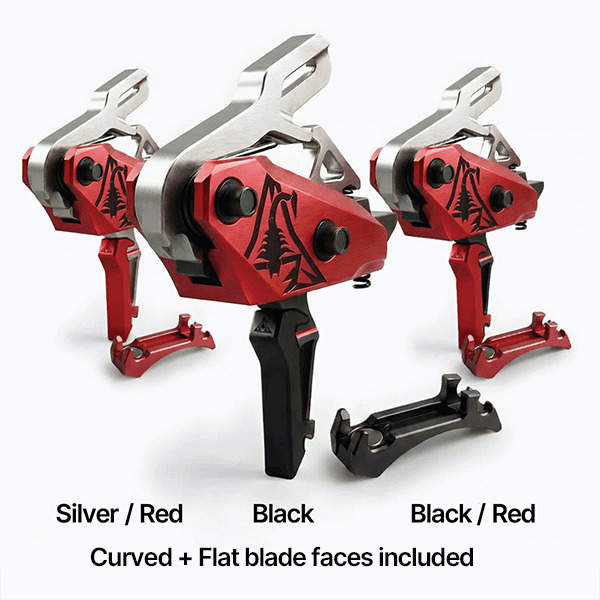

Flat or Curved Trigger Face

Another useful feature of the Rise Armament REV-535 Trigger is the inclusion of both flat and curved trigger faces.

Some shooters prefer a flat trigger because it gives them a consistent surface for finger placement. Others prefer the more traditional feel of a curved bow. Rather than forcing the buyer to choose one or the other, Rise includes both.

The interchangeable faces use the company’s TorLok system, allowing the shooter to change the trigger face without replacing the entire fire-control unit.

It is a simple feature, but it adds some flexibility for anyone who is not completely sure which style they prefer.

Materials and Construction

Rise Armament uses a 6061 aluminum housing for the Rise Armament REV-535 Trigger, while the internal components are made from heat-treated S7 tool steel with a nickel boron coating.

The complete trigger weighs approximately 2.3 ounces.

Rise manufactures the trigger in Broken Arrow, Oklahoma, and backs it with the company’s lifetime manufacturing warranty.

That construction places the REV-535 squarely in the same category as other premium cassette-style AR triggers intended for shooters who want a cleaner, more refined trigger than the standard mil-spec setup.

Rise Armament REV-535 Trigger Compatibility

The standard Rise Armament REV-535 Trigger is designed for AR-pattern receivers that use .154-inch small trigger pins.

That includes most modern AR-15 and AR-10 lowers, making it relevant for builds chambered in cartridges such as 5.56 NATO, .300 Blackout, .308 Winchester, and 6.5 Creedmoor.

Rise has also referenced Rise Armament REV-535 Trigger compatibility with some pistol-caliber AR platforms, although PCC configurations can vary more than a standard AR-15. It is always worth checking the exact lower and bolt setup before choosing a trigger.

Large-pin Colt-style lowers fall outside the intended application.

Rise also offers other Slide and Snap products for different trigger systems, so buyers should make sure they are looking at the correct version for their specific rifle.

Where the REV-535 Fits

The AR trigger market is crowded, and there are plenty of good single-stage options available.

That means the Rise Armament REV-535 Trigger has to offer something beyond simply being another lighter trigger.

Its main advantage is convenience.

The integrated hardware, simplified cassette design, and interchangeable trigger faces give it a slightly different purpose than a basic drop-in unit. Shooters who already like the feel of Rise’s single-stage triggers may find that the REV-535 makes the most sense when ease of installation is also a priority.

For a shooter upgrading one rifle, that convenience may simply be a nice extra. For someone who regularly builds, maintains, or changes multiple AR lowers, it becomes a more meaningful part of the design.

Final Thoughts

The Rise Armament REV-535 Trigger is not a radical departure from what Rise Armament has already been doing well.

The trigger still follows the company’s familiar single-stage formula, with a light pull, clean break, and short reset. The real change is the Slide and Snap cassette, which focuses on reducing the extra hardware and hassle associated with installing many drop-in triggers.

That makes the REV-535 a good example of an AR part that improves the user experience without trying to completely reinvent the component.

For shooters who like the feel of a fast single-stage trigger and want a cleaner installation process, the REV-535 brings both ideas together in one package.
