Description

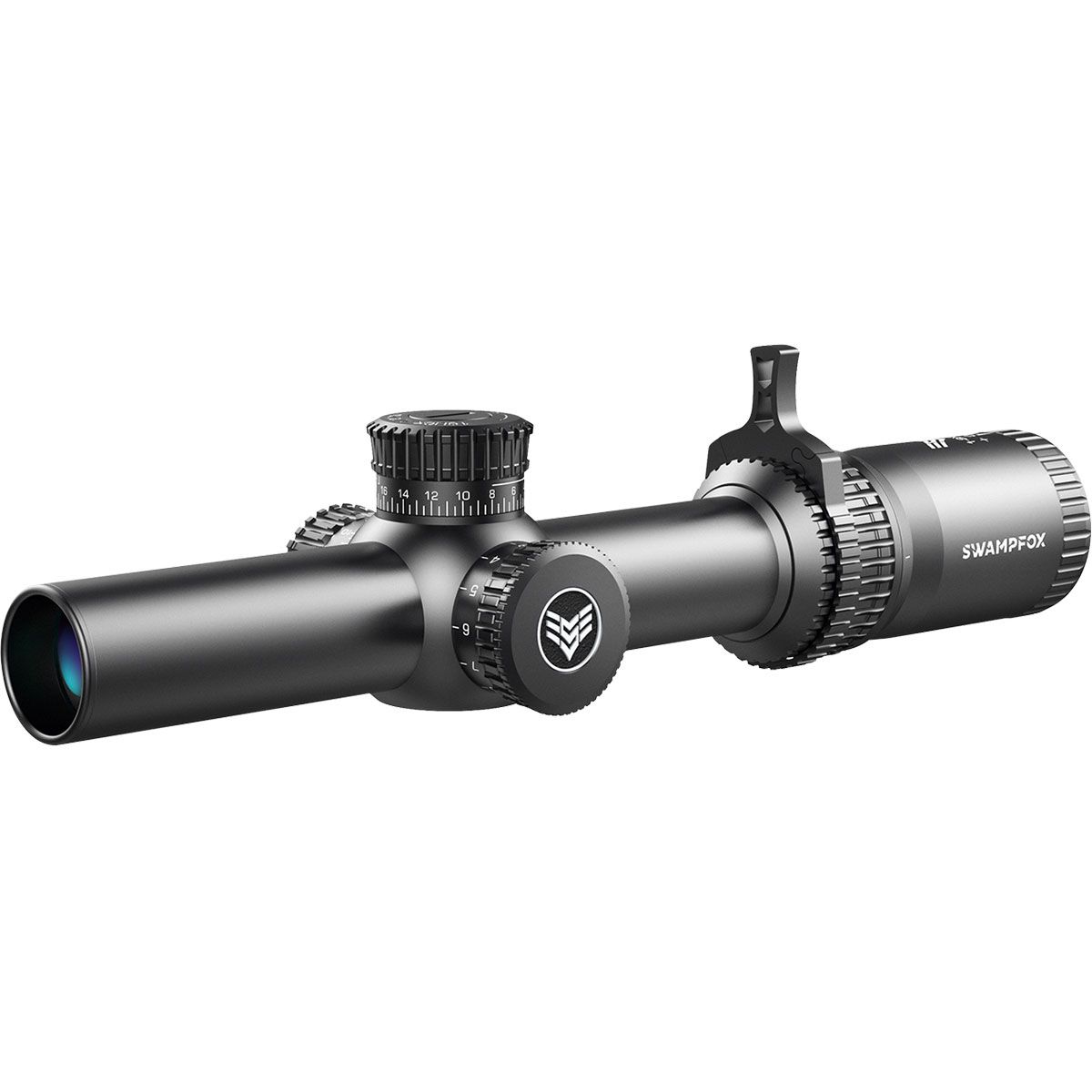

The Swampfox Tomahawk is hands down the best value LPVO on the market today. This optic provides clarity, durability and accuracy that is unrivaled by any other Low Power Variable Optic at similar price points. Sporting a Second Focal Plane (SFP) glass etched illuminated reticle designed for dynamic shooting, and a throw lever for rapid magnification adjustment, this highly versatile scope is ideal for 2 & 3-gun competitions. Choose between two different reticle options: the Guerrilla Dot BDC™ or Guerrilla Cross MOA™.
Specifications:
- Magnification 1-4x
- Tube Diameter 30mm
- Objective Lens Diameter 24mm
- Exit Pupil (mm) 5.9 @4Xmm (1X-4X)
- Eye Relief (in) 3.7-3.8″ (1X-4X)
- FOV @ 100 Yards (ft) 95.1-23.6′ (1X-4X)
- Click Value 1/2 MOA
- Parallax Setting 50 yds
- Travel Per Rotation 60 Clicks/ 30 MOA
- Max Elevation Adjustment 100 MOA
- Max Windage Adjustment 100 MOA
- Lens Coating Fully Multi-Coated/ Anti-fog/Hydrophobic
- Illumination 11 Position Illumination turret
- Battery Side-mounted CR2032 Battery
- Reticle BDC & MOA Glass Etched Illuminated
- Magnification Required for Reticle Accuracy 4x
- Fast Focus Diopter Yes, -2 to +2
- Turret Style Tactical Turrets with Zero Reset
- Length 9.79″
- Weight 17.5oz
- Waterproof Rating IPX7
- Impact Resistance 1,100 G Forces
Reticle:
- The Guerrilla Cross MOA hybrid reticle is designed for rapid target acquisition in Close Quarter Battle as well as precision shooting for longer shots.
- The Guerilla Dot BDC is highly versatile, capable of delivering rapid target acquisition at true 1x power, while also providing various holdovers for mid to long range shots.
Additional information
| Weight | N/A |
|---|---|
| Reticle | Guerilla Dot BDC, Guerrilla Cross MOA |
| Tube Diameter | 1 in, 30mm, 34mm, 35mm, Not Applicable |
| Exit Pupil Diameter | 1 – 3 mm, 11.20 – 3.30 mm, 11.4mm – 4mm, 11.5 – 5.2 mm, 11.50 – 3.10 mm, 11.70 – 3.00 mm, 12.20 – 3.20 mm, 16.20 – 2.70 mm, 16.70 – 4.40 mm, 17.50 – 5.10 mm, 2 – 10 mm, 2.07 – 12.4 mm, 2.08 – 8.3 mm, 2.1 – 8.3 mm, 2.4 – 7.3 mm, 2.5 – 10 mm, 2.75 – 11 mm, 3.2 – 16 mm, 3.3 – 10 mm, 3.4mm, 4 – 24 mm, 4-24mm, 4.17 – 12.5 mm, 4.4 – 13.3 mm, 4.57 – 16 mm, 5.9mm, 6 – 20 mm, 8 mm, 8.10 – 2.20 mm, 8.20 – 1.90 mm, 8.5mm, 9.00 – 4.00 mm, 9.0mm at 1x / 3.0mm at 8x, 9.91mm, Not Applicable |
| Eye Relief | 1.50 in, 2.20 in, 2.3 in, 2.4 in, 2.50 – 3.00 in, 2.50 in, 2.60 in, 2.70 in, 2.72 – 2.92 in, 2.80 – 2.70 in, 2.80 in, 3 in, 3.11 in, 3.20 – 3.30 in, 3.20 in, 3.22 – 3.14 in, 3.3 – 3.5 in, 3.40 in, 3.50 – 3.30 in, 3.50 in, 3.6 – 3.8 in, 3.6 in, 3.60 – 3.50 in, 3.70 – 3.80in, 3.70 in, 3.8 – 4.4 in, 3.80 in, 3.90 – 3.50 in, 3.90 in, 3.98 – 3.83in, 4 – 5 in, 4 in, 4.00 – 3.30 in, 4.1 in, 4.3 – 3.7 in, 4.30 – 4.00 in, 9.45 in |
| Field View 100 yds | 18.80 ft, 20.00 ft, 23.30 ft, 25 – 85 ft, 26.90 ft, 28.9 ft, 29.20 ft, 31.50 ft, 36.60 ft, 36.80 ft, 37.50 ft, 37.90 ft, 38.20 ft, 39.00 ft, 42 ft, 76.50 ft, 79.00 ft, Low: 105.00 ft / High: 14.30 ft, Low: 105.80 ft / High: 13.25 ft, Low: 106.00 ft / High: 18.50 ft, Low: 106.70 ft / High: 17.70 ft, Low: 108.20 ft / High: 17.70 ft, Low: 110.00 ft / High: 14.50 ft, Low: 110.00 ft / High: 19.30 ft, Low: 110.00 ft / High: 19.80 ft, Low: 110.00 ft / High: 23.80 ft, Low: 112.50 ft / High: 18.80 ft, Low: 115.20 ft / High: 20.50 ft, Low: 116 ft / High: 11.7 ft, Low: 116.50 ft / High: 19.20 ft, Low: 116.60 ft / High: 14.40 ft, Low: 14.8 ft / High: 44.6 ft, Low: 15.20 ft / High: 4.20 ft, Low: 15.20 ft / High: 5.30 ft, Low: 16.60 ft / High: 3.30 ft, Low: 17.30 ft / High: 4.40 ft, Low: 17.80 ft / High: 5.10 ft, Low: 18.30 ft / High: 5.20 ft, Low: 22.00 ft / High: 5.76 ft, Low: 23.60 ft / High: 7.9 ft, Low: 23.70 ft / High: 6.30 ft, Low: 24.10 ft / High: 4.8 ft, Low: 24.70 ft / High: 8.40 ft, Low: 25.30 ft / High: 4.40 ft, Low: 26.19 ft / High: 6.98 ft, Low: 27.20 ft / High: 7.85 ft, Low: 27.40 ft / High: 7.40 ft, Low: 33.9 ft / High: 11.3 ft, Low: 34.10 ft / High: 12.60 ft, Low: 35.80 ft / High: 10.00 ft, Low: 36.70 ft / High: 6.10 ft, Low: 38.40 ft / High: 12.60 ft, Low: 4.5 ft / High: 18 ft, Low: 58.30 ft / High: 11.70 ft, Low: 7.4 ft / High: 27.4 ft, Low: 8.60 ft / High: 41.20 ft, Low: 95.10 ft / High: 23.60 ft, Low: 97.50 ft / High: 24.20 ft |
| Focal Plane | First Focal Plane, Fixed, Prism Scope, Second Focal Plane |
| Illuminated | No, Yes |
| Maximum Magnification | 1, 1.5, 10, 12, 14, 15, 16, 18, 2, 2.5, 20, 24, 25, 27, 3, 3.5, 30, 4, 5, 6, 7, 8, 9 |
| Minimum Magnification | 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 6 |
| Objective Diameter | 21mm, 24mm, 25mm, 28mm, 30mm, 32mm, 34mm, 35mm, 39mm, 40mm, 44mm, 50mm, 56mm |
| MPN | ATK14241-B,ATK14241-M |
| UPC | 889157000756, 889157000787 |
