Description
This rifle scope is part of our SLx optics line. SLx optics built our reputation for innovation, reliability and value. All SLx optics undergo rigorous field-testing during development to best serve you in any environment.

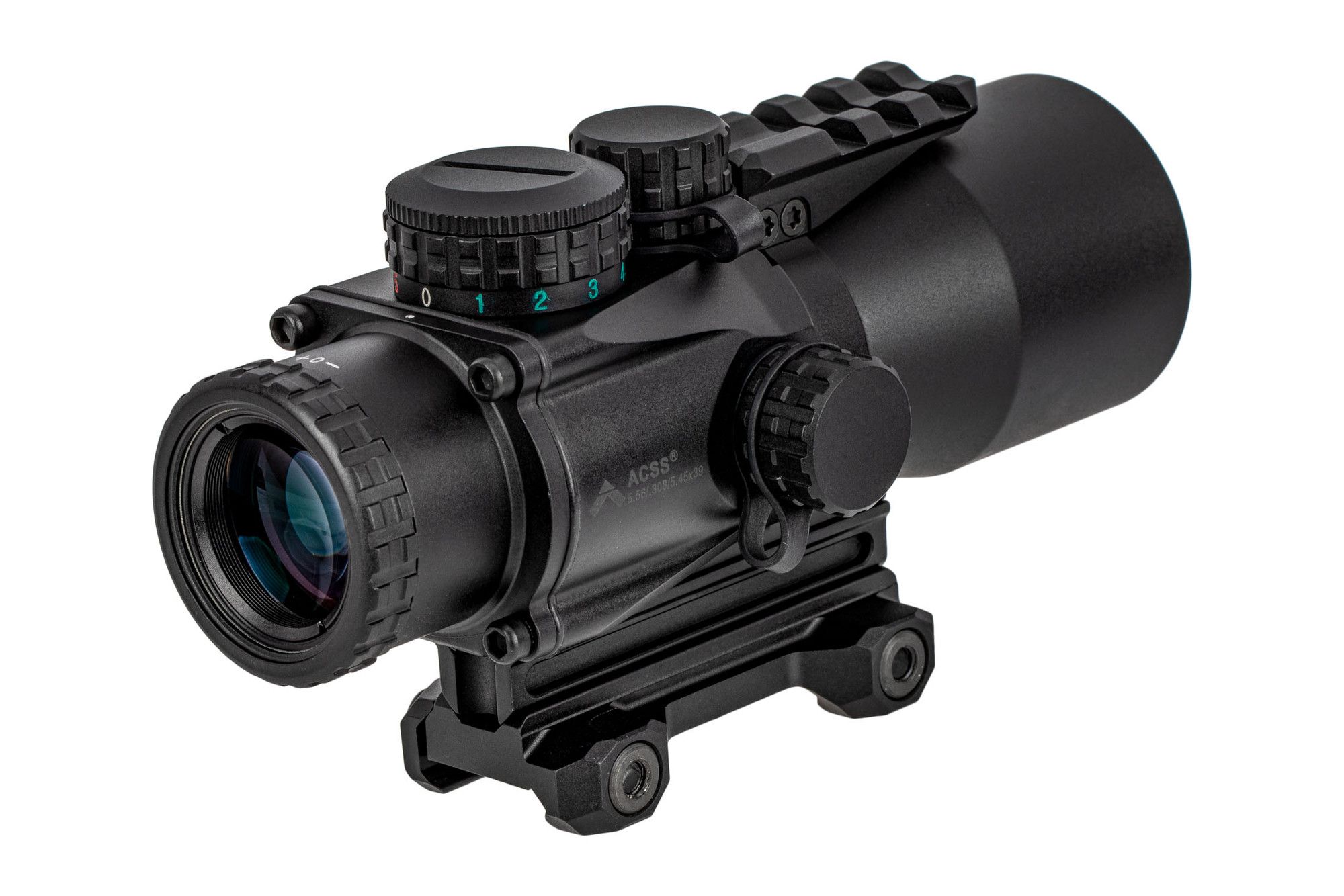

The Primary Arms 5X Compact Prism Scope Gen III with improved ACSS 5.56 reticle is our most powerful prism scope design. The 5X magnification and bright illuminated horseshoe and chevron reticle allow for surprisingly fast, both-eyes-open shooting at close range, while the ACSS reticle allows for consistent hits on targets out to an impressive 800 yards. The Gen III scope has been equipped with our next generation ruggedized mounts to provide flexible mounting options with incredible clamping power.
Features:
- New Ruggedized Mount provides exceptional clamping power
- Includes AR-height riser
- Partially illuminated reticle is visible even in bright daylight with red or green illumination
- Red or green illumination available on the same optic for greater flexibility
- Removable M1913 picatinny top rail for accessories or piggy-backed red dot sights
- Generous 10.3mm exit pupil allows for a bright and forgiving eye box
- 18.8ft field of view at 100 yards provides easier tracking of mobile targets
- 2.7″ – 3.0″ of eye relief
- 1/4 MOA turret clicks are tactile and audible for easy zeroing
- Tough prism scope is waterproof, fog resistant, and shockproof
- Durable hardcoat anodized black finish
- Compatible with standard carry handle mounts
- Protected by a lifetime warranty
The heart of our tough Gen II 5X Prism Scope is the ACSS reticle that combines ranging, wind leads, moving target leads, and ballistic drop compensation out to 800 yards. To the right of the BDC ladder is our integrated ranging system. Place the bottom of the target on the bottom rung, and range up. As an added bonus, the glass etched reticle does not require batteries or illumination, but 10 brightness settings (5 red and 5 green) allow for fast acquisition in close quarters, or enhanced visibility in fading light, powered by a common CR2032 battery!
The SLx 5X Gen III has even greater strength and flexibility than ever before with our next generation ruggedized mounting system. We’ve upgraded everything about the mount from materials and finish to the design to create a mount that will not just clamp securely to your rail, but stand up the rigors of real-world use. Integrated recoil lugs help lock your mount in place against the heaviest recoil while large diameter crossbolts give you significantly improved clamping power and will hold up to significant torque. The included riser is the perfect height for AR-15s and AR-10s, but can be easily removed for carry handle or AK use as well.
Additional information
| Weight | 17.6 oz |
|---|---|
| Reticle | ACSS-5.56/.308 Reticle, ACSS-AURORA Reticle |
| Tube Diameter | 1 in, 30mm, 34mm, 35mm, Not Applicable |
| Exit Pupil Diameter | 1 – 3 mm, 11.20 – 3.30 mm, 11.4mm – 4mm, 11.5 – 5.2 mm, 11.50 – 3.10 mm, 11.70 – 3.00 mm, 12.20 – 3.20 mm, 16.20 – 2.70 mm, 16.70 – 4.40 mm, 17.50 – 5.10 mm, 2 – 10 mm, 2.07 – 12.4 mm, 2.08 – 8.3 mm, 2.1 – 8.3 mm, 2.4 – 7.3 mm, 2.5 – 10 mm, 2.75 – 11 mm, 3.2 – 16 mm, 3.3 – 10 mm, 3.4mm, 4 – 24 mm, 4-24mm, 4.17 – 12.5 mm, 4.4 – 13.3 mm, 4.57 – 16 mm, 5.9mm, 6 – 20 mm, 8 mm, 8.10 – 2.20 mm, 8.20 – 1.90 mm, 8.5mm, 9.00 – 4.00 mm, 9.0mm at 1x / 3.0mm at 8x, 9.91mm, Not Applicable |
| Eye Relief | 1.50 in, 2.20 in, 2.3 in, 2.4 in, 2.50 – 3.00 in, 2.50 in, 2.60 in, 2.70 in, 2.72 – 2.92 in, 2.80 – 2.70 in, 2.80 in, 3 in, 3.11 in, 3.20 – 3.30 in, 3.20 in, 3.22 – 3.14 in, 3.3 – 3.5 in, 3.40 in, 3.50 – 3.30 in, 3.50 in, 3.6 – 3.8 in, 3.6 in, 3.60 – 3.50 in, 3.70 – 3.80in, 3.70 in, 3.8 – 4.4 in, 3.80 in, 3.90 – 3.50 in, 3.90 in, 3.98 – 3.83in, 4 – 5 in, 4 in, 4.00 – 3.30 in, 4.1 in, 4.3 – 3.7 in, 4.30 – 4.00 in, 9.45 in |
| Field View 100 yds | 18.80 ft, 20.00 ft, 23.30 ft, 25 – 85 ft, 26.90 ft, 28.9 ft, 29.20 ft, 31.50 ft, 36.60 ft, 36.80 ft, 37.50 ft, 37.90 ft, 38.20 ft, 39.00 ft, 42 ft, 76.50 ft, 79.00 ft, Low: 105.00 ft / High: 14.30 ft, Low: 105.80 ft / High: 13.25 ft, Low: 106.00 ft / High: 18.50 ft, Low: 106.70 ft / High: 17.70 ft, Low: 108.20 ft / High: 17.70 ft, Low: 110.00 ft / High: 14.50 ft, Low: 110.00 ft / High: 19.30 ft, Low: 110.00 ft / High: 19.80 ft, Low: 110.00 ft / High: 23.80 ft, Low: 112.50 ft / High: 18.80 ft, Low: 115.20 ft / High: 20.50 ft, Low: 116 ft / High: 11.7 ft, Low: 116.50 ft / High: 19.20 ft, Low: 116.60 ft / High: 14.40 ft, Low: 14.8 ft / High: 44.6 ft, Low: 15.20 ft / High: 4.20 ft, Low: 15.20 ft / High: 5.30 ft, Low: 16.60 ft / High: 3.30 ft, Low: 17.30 ft / High: 4.40 ft, Low: 17.80 ft / High: 5.10 ft, Low: 18.30 ft / High: 5.20 ft, Low: 22.00 ft / High: 5.76 ft, Low: 23.60 ft / High: 7.9 ft, Low: 23.70 ft / High: 6.30 ft, Low: 24.10 ft / High: 4.8 ft, Low: 24.70 ft / High: 8.40 ft, Low: 25.30 ft / High: 4.40 ft, Low: 26.19 ft / High: 6.98 ft, Low: 27.20 ft / High: 7.85 ft, Low: 27.40 ft / High: 7.40 ft, Low: 33.9 ft / High: 11.3 ft, Low: 34.10 ft / High: 12.60 ft, Low: 35.80 ft / High: 10.00 ft, Low: 36.70 ft / High: 6.10 ft, Low: 38.40 ft / High: 12.60 ft, Low: 4.5 ft / High: 18 ft, Low: 58.30 ft / High: 11.70 ft, Low: 7.4 ft / High: 27.4 ft, Low: 8.60 ft / High: 41.20 ft, Low: 95.10 ft / High: 23.60 ft, Low: 97.50 ft / High: 24.20 ft |
| Focal Plane | First Focal Plane, Fixed, Prism Scope, Second Focal Plane |
| Illuminated | No, Yes |
| Maximum Magnification | 1, 1.5, 10, 12, 14, 15, 16, 18, 2, 2.5, 20, 24, 25, 27, 3, 3.5, 30, 4, 5, 6, 7, 8, 9 |
| Minimum Magnification | 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 6 |
| Objective Diameter | 21mm, 24mm, 25mm, 28mm, 30mm, 32mm, 34mm, 35mm, 39mm, 40mm, 44mm, 50mm, 56mm |
| MPN | 0.1 MIL, 0.2 MIL, 0.25 MOA, 1/2 MOA, 1/2 MOA / 1/4 MOA, 1/4 MOA |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
