Ergo Modular M-LOK Rail System 1pc

Comes standard with a 3-pack of M-LOK or KeyMod Rail covers in black and an 18 slot ladder in black for the Picatinny Rail.

6061 T6 Construction, Type III Black Hard-Coat Anodized. CNC machined lightweight one piece free float design. Aluminum barrel nut allows mounting of up to 1” diameter barrels.

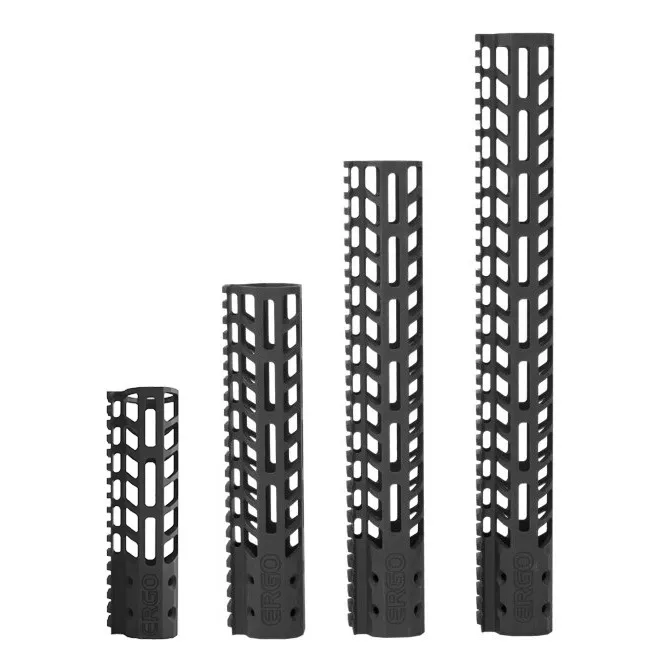

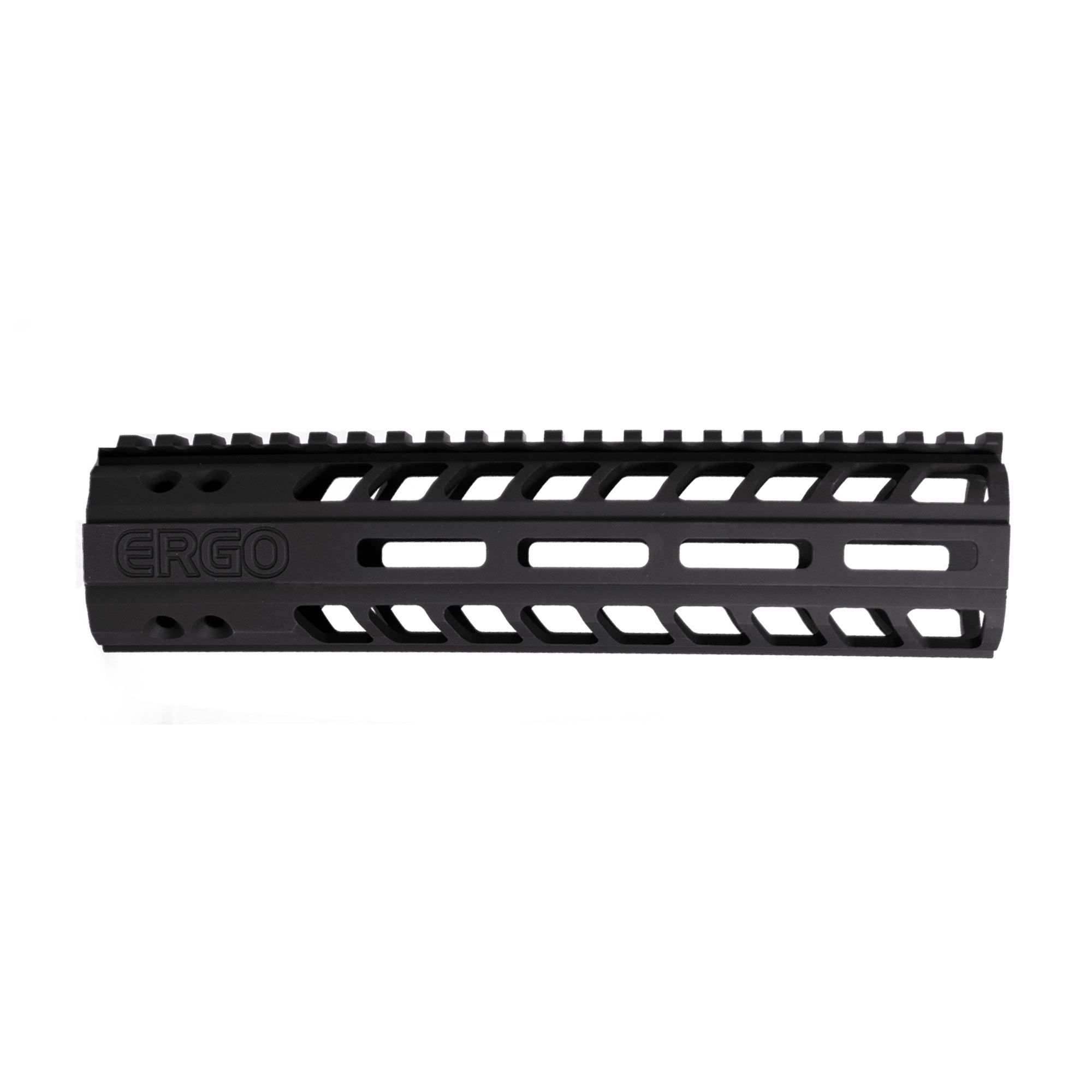

9″ Version Weighs 8 ounces

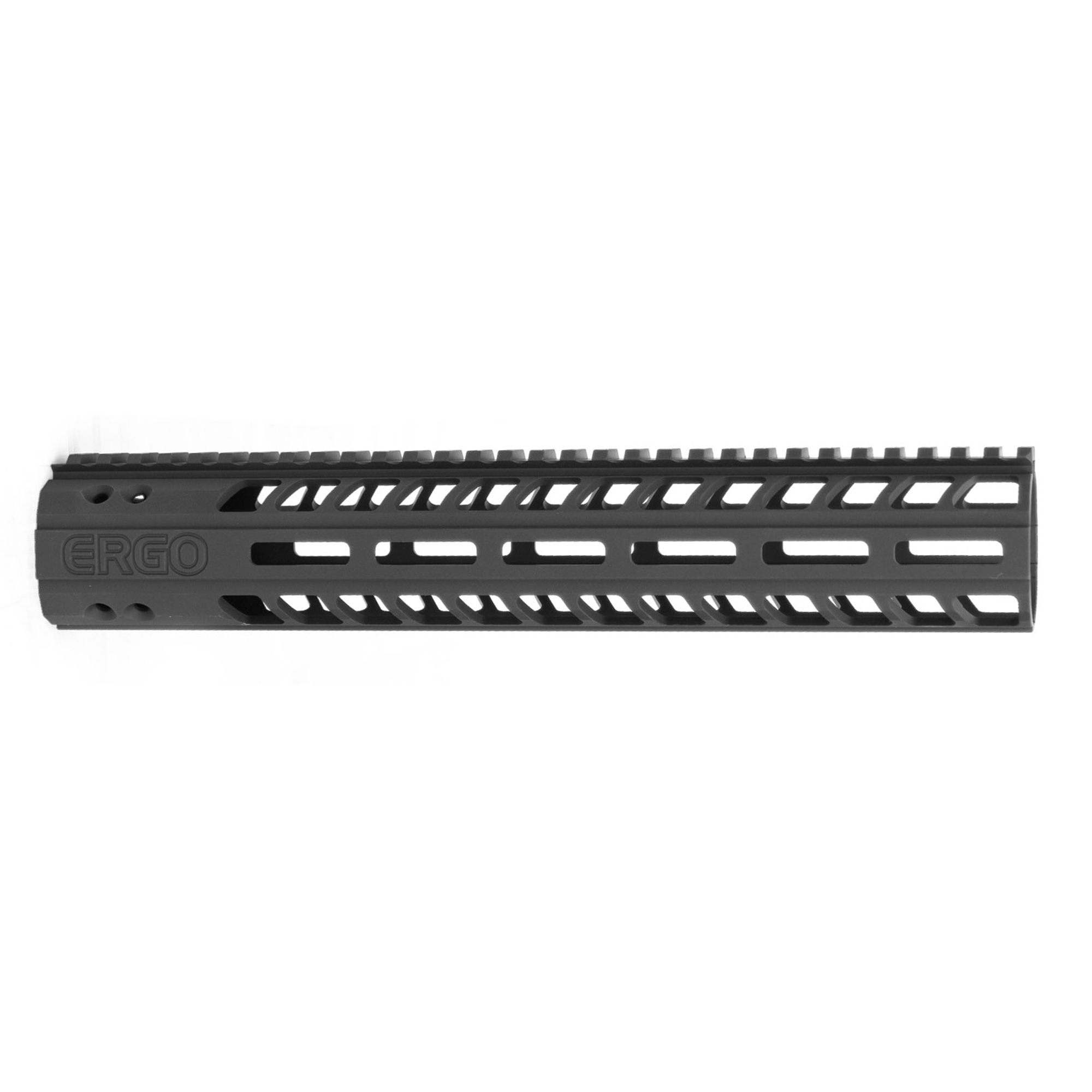

12″ Version Weighs 11 ounces

15″ Version Weighs 14 ounces

Features:

• M-LOK design to accept Ergo and all other M-LOK accessories
• Aluminum Barrel Nut included
• Accepts Ergo WedgeLok; Rail Covers
• Full length, scalloped Mil-Spec 1913 Picatinny top rail
• 1.8″ inside diameter to accept most suppressors
• For AR-15/M16 platforms (Not AR-10, SR25, etc…)
• Uses standard barrel nut wrench
• Made in the USA. Made to Magpul M-LOK specifications

Installation instructions

Tools required:

• USGI barrel nut wrench
• 3/32″ Allen Wrench
• 1. Clean and inspect upper receiver, barrel and barrel nut.
• 2. Place receiver in proper vise block.
• 3. Coat threads with grease or anti seize compound.
• 4. Install barrel into receiver. Be sure to align indexing pin with slot in upper receiver.
• 5. Slip barrel nut over barrel and thread onto upper receiver hand tight.
• 6. Using a standard USGI barrel nut wrench, torque nut to 30-50 ft-lbs. Check alignment of gas tube hole in upper receiver. You may need to loosen and tighten nut once or twice to get proper alignment and torque.
• 7. Install gas tube and gas block, per proper instructions.
• 8. Slip handguard over barrel and gas block.
• 9. Align screw holes in handguard with holes in barrel nut.
• 10. Start all screws before tightening any of them. We recommend blue thread locking compound.
• 11. Make sure everything is aligned properly and installed correctly.
• 12. Tighten all screws.
• 13. Enjoy your new, state of the art handguard.
• Comes with a Barrel Nut & Hardware, but if you need a replacement Barrel Nut and Hardware – please click here to purchase.
• Weight 0.87 lbs
• Dimensions 10 x 2.5 x 16 in
• Lengths 9″, 12″, 15″
