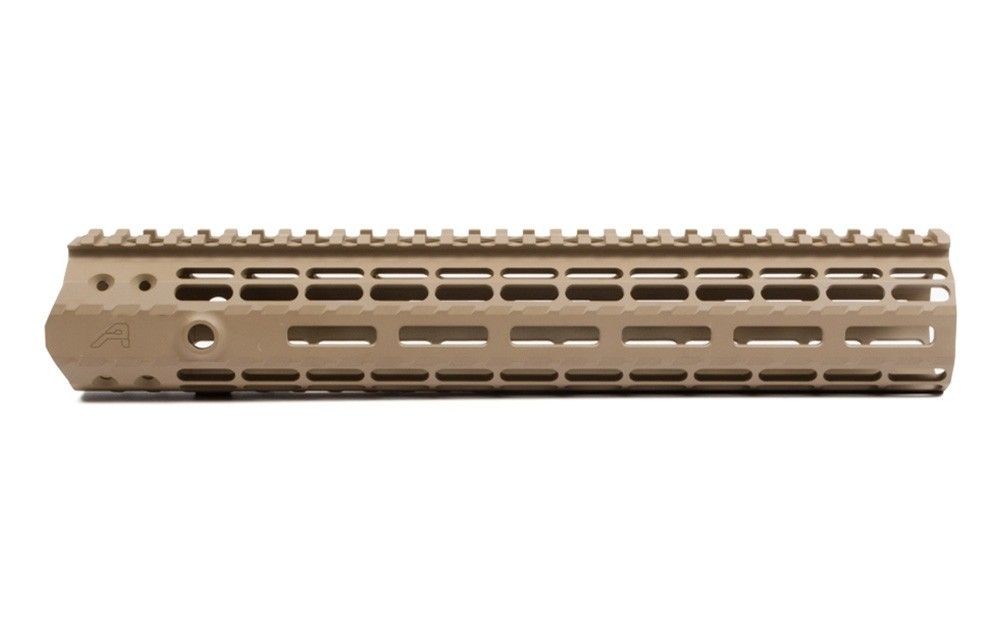

Aero Precision M5 (.308) Enhanced M-LOK Handguard, Gen 2 w/ BAR Barrel Nut – FDE

Our Enhanced M-LOK (EM) Handguards provide a lightweight free float design for your custom M5 .308 build. The M-LOK system allows advanced modularity past the current 1913 picatinny rail system. Machined to mil-spec dimensions and engineered to perfection, this handguard eliminates bulk while retaining strength and stability.

Features:

• 1pc free float design
• Built in anti-rotation tabs
• Scalloped rails
• 1.72″ inside diameter (from barrel nut cut to forward end) fits most muzzle devices and 1.5″ suppressors
• 1.78″ inside barrel nut cut area diameter
• Compatible with low profile gas blocks
• DPMS High Profile (.210) Tang
• Gen 2 Feature – Quick disconnect sling socket at the 3, 6 and 9 o’clock positions
• Gen 2 Feature – Additional milling along flats to aid with gripping and add visual appeal
• Gen 2 Feature – New profile for the continuous picatinny top rail

Includes DPMS / AERO M5 Barrel Nut

Please note – This handguard is specific to the M5 .308/M5E1 platform. It is not compatible with the AR-15/M4E1 platform.

Specifications:

• Made In AMERICA: Yes
• Platform: M5
• Series: M5E1
• Attachment Type: M-LOK
• Material: Machined from 6061-T6 aluminum
• Actual Handguard Lengths: 9″ – 9.19″, 12″ – 12.63″, 15″ – 14.94″ Aero Precision rail lengths measure from end to end. This is the point of contact at the receiver to the end of the last picatinny slot at the muzzle.
• Weights: 9″ – 7.2 oz / 12″ – 9.9 oz / 15″ – 11.3 oz
• Other: Handguard Screw Torque – 25 in-lbs
