Forward Controls Design NVTS Nautilus Variable Timing System - 5/8x24

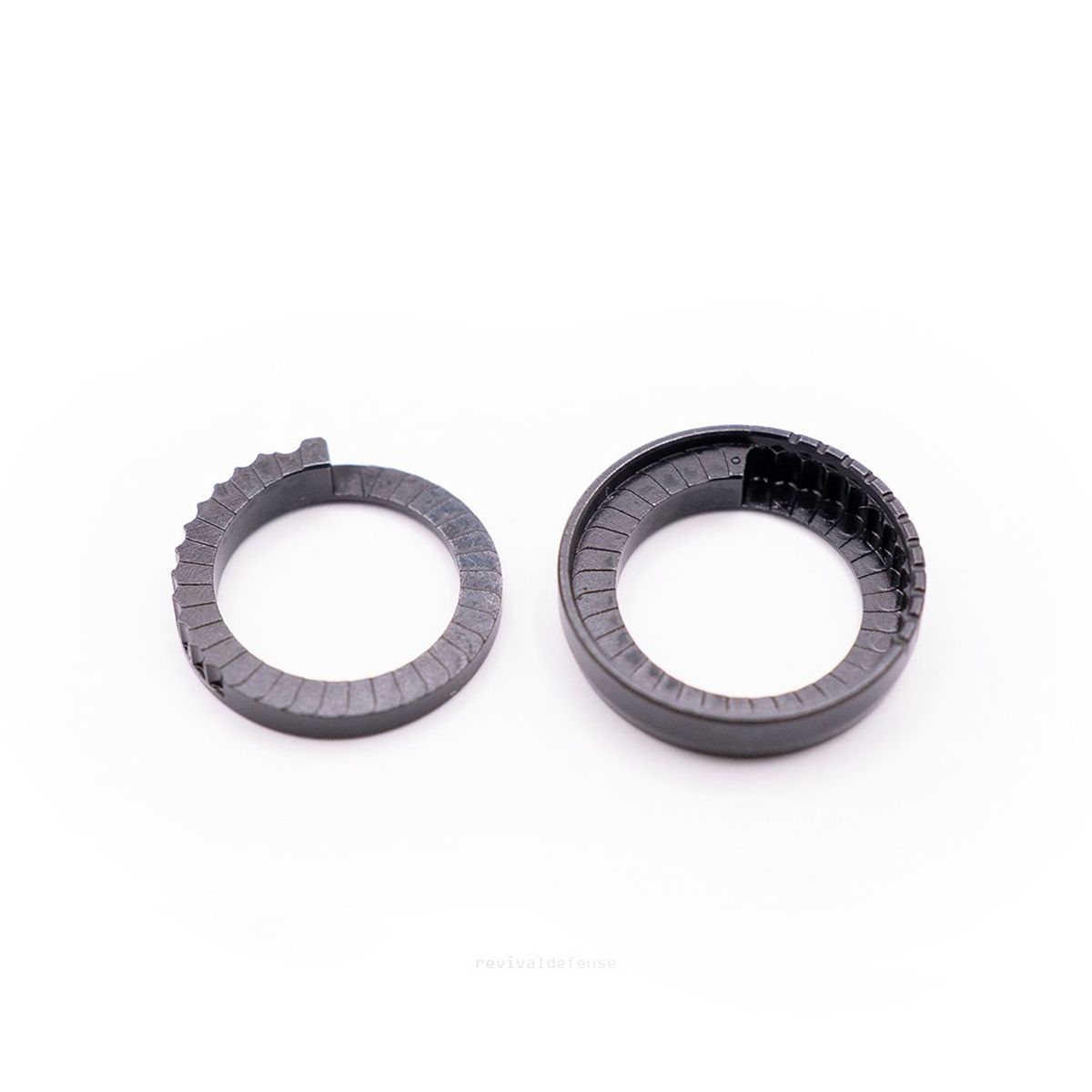

Designed and Patented by Swiss CNC with input from Forward Controls Design, the NVTS is an intelligently designed muzzle device timing system. The name is in reference to the marine cephalopod due to the resemblance of the internal timing mechanism. The NVTS consists of two interworking components, a base and a disk. The base has 12 tick marks around the side, each to represent 1 hour on a clock, or 30 degrees worth of adjustment. The top disc separates from the base and locks in place when adjusted to the desired position. The NVTS simplifies the process of installing muzzle devices and also reduces the potential for the frustration that most folks have experienced searching through a bag of shims to find a combination that works, you simply need one NVTS per muzzle device and all of the adjustability is built in. The simple, yet intricate design of the NVTS makes installation simple and efficient. The NVTS is extremely strong featuring a 148,000 PSI tensile strength and Patent Pending QPQ Process from Swiss CNC making the NVTS reusable.

Features:

• Precision Machined 4140 with Swiss CNC developed Patent Pending QPQ protection to provide superior protection against salt spray paint corrosion.
• Available in 1/2×28 or 5/8×24 Thread Pitch
• Tensile Strength: 148,000 PSI Hardness of 48-52 HRC ( NVTS is reusable)
• Length: 0.161″ set at 12 o’clock or 0 Degrees 0.194″ set to 11 o’clock or 330 degrees
• NVTS (Patent Pending) was developed and manufactured by Swiss CNC with input from Forward Controls Design
